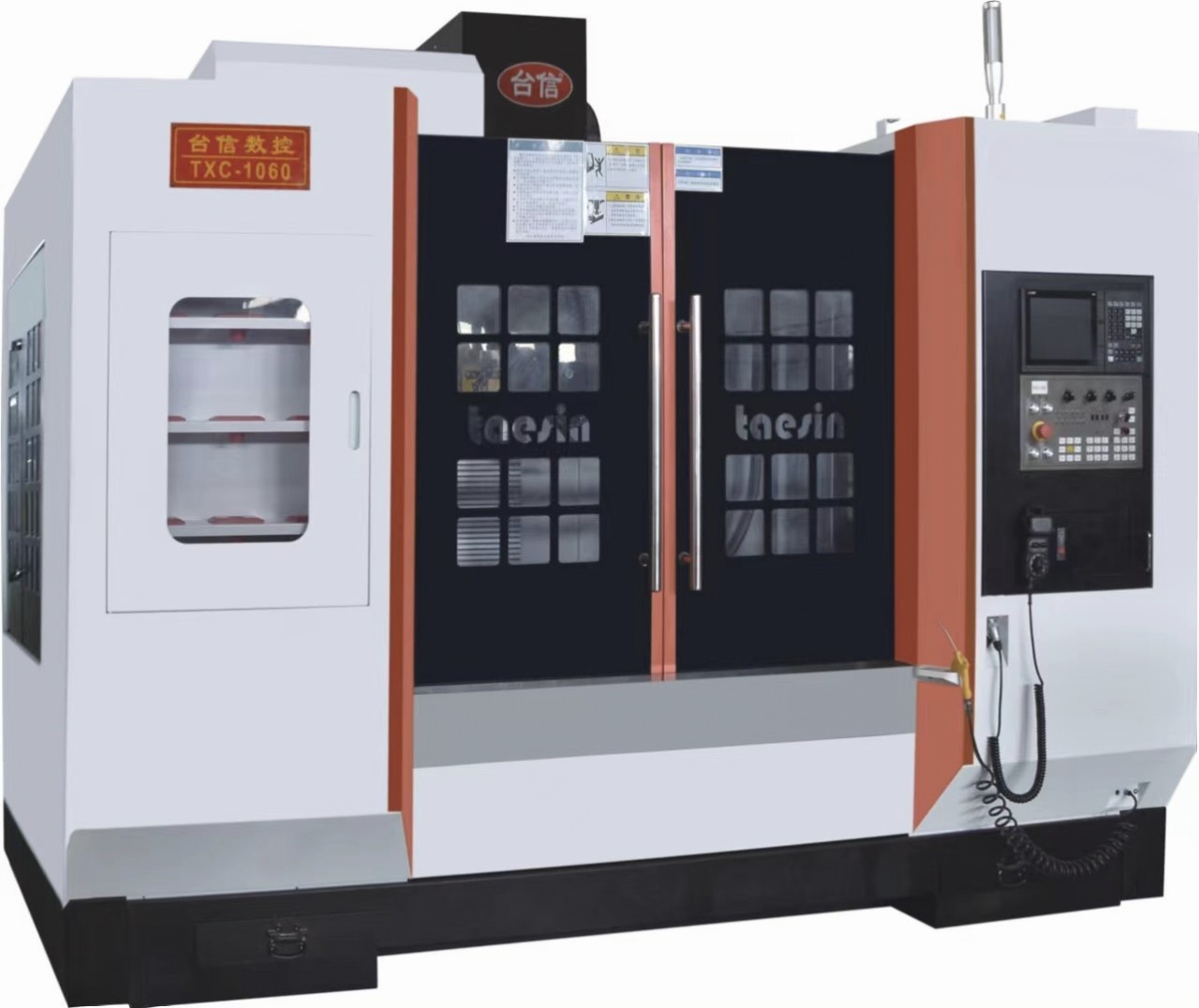

Hard Rail Machining Center Series TXC-1060

Name/Model: TXC-1060

Workbench size: 600x1300 mm

Three-axis travel (X/Y/Z): 1000/600/600 mm

Distance from spindle center to column guide rail: 600 mm

Distance from spindle end face to worktable: 180-780 mm

T-Slot (number - size x spacing): 5 - 18 x 120

Spindle taper hole: BT40/Ø150

Spindle maximum speed: 8000 rpm

Spindle motor: 11 KW

X/Y/Z Axis motor:3/3/3 KW

X/Y/Z ball screw specifications: 4010 mm

X/Y/Z fast movement: 16/16/15 m/min

Cutting speed:1-8000mm/min

Positioning accuracy: +- 0.004/300 mm

Repeat positioning accuracy: +- 0.004 mm

Workbench load:800 kg

Machine weight: 7 T

Machine size: 3300 x 2900 x 2800 mm
